Charbroil & W. C. Bradley
Gas Grill Parts from BBQParts.com


Part
Number
Precision Flame Burners Our
Price
The 7000, 8000, and 9000 Precision Flame Burners are now sold only in factory kits that comes with U-Shaped burner, drip vaporiser shield and burner bracket.
9000 Series Burner Kit
4594004
in-stock
Charbroil discontinued the factory 9000 precision flame burner kit but, fortunately, we now stock and sell an exact-replica burner kit for the Charbroil 9000 precision flame grill. This kit comes with the factory-style, U-shaped precision flame burner, the u-shaped drip vaporiser shield, and the burner mounting bracket with the nut and bolt mounting hardware for the burner bracket. (4594004) (13902/PFB9) $39.95
Each
Quantity:

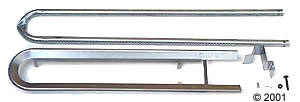

8000 Series Burner Kit
4594006
in-stock
U-Shaped burner, now comes as a kit, includes burner, drip vaporiser shield & burner bracket. (PFB8)
$39.95
Each
Quantity:
7000 Series Burner Kit
4594008
in-stock
U-Shaped burner kit for the 7000 series, includes burner, drip vaporiser shield & burner bracket. (13702)
$39.95
Each
Quantity:



Back to the Charbroil Page

Part
Number
Masterflame Burner Assemblies Our
Price
Masterflame Burners - Two Different Burners in Two Different Eras. Charbroil has used two different burners in their 7000, 8000 & 9000 Masterflame series grills. The difference is very hard to distinguish by sight. In the grills made before 1999, the burner part number is 4594652 and the distance between the venturi tube centers is 3 inches AND the collector box is triangular-shaped. In the grills made in 1999 and later, the distance between the venturi tube centers is 2 3/8 inches AND the collector box is square shaped. All the other parts we sell for the two grill series are exactly the same.
The Masterflame Burners Below Were Used in Pre-1999 Charbroil Models
9000 Burner Assembly Pre 1999
4594652
Sorry, we are sold out of this burner and cannot supply. We have no substitutes to offer.
Masterflame Bar Burner for 9000 and 8000 series models made before 1999 with two venturi tubes that curve to the front. (MHP4652)
8000 Burner Assembly Pre 1999
4594652
Sorry, we are sold out of this burner and cannot supply. We have no substitutes to offer.
Masterflame Bar Burner for 9000 and 8000 series models made before 1999 with two venturi tubes that curve to the front. (MHP4652)
7000 Burner Assembly Pre 1999
4594651
in-stock
This exact-fit, stainless steel bar burner is a replacement for Charbroil part number 4594651. The burner is exactly the same except it is bottom-ported (meaning the flames come out of the underside of the burner instead of the top side). This means the original Charbroil collector box (4501758) will not work with this burner. All other burner dimensions and sizes are the same as 4594651: 17 inches long, 2 1/4 inches wide, with dual venturis 3 inches apart, center to center, and the venturi tube reach is 7 1/2 inches. This burner is stainless steel. Shipped assembled. Item number BBC-29. $21.95
Each
Quantity:
6000 Burner Assembly Pre 1999
4594650
Sorry, we are sold out and cannot supply.
Masterflame Bar burner with two venturi tubes that curve to the front.22.95
5000 Burner Assembly Pre 1999
4594650
Sorry, we are sold out and cannot supply.
Masterflame Bar burner with two venturi tubes that curve to the front.22.95
Igniter Set
4501758
The triangular-shaped collector box that is part number 4501758 has been discontinued by Charbroil. We are sold out. We have no alternatives for this collector box. The electrode and wire part (part number 5156105) that is used with the collector box is still available separately. It can be ordered through our parts database look up.
The Masterflame Burners Below Were Used in After 1999 Charbroil Models
9000 Burner Assembly 1999 & After
4509093
Sorry, we are sold out of this burner and cannot supply. We have no substitutes to offer.
Masterflame 2.5 series burner assembly for Charbroil grills made in 1999 and later. The distance between the center of the venturi tubes is 2 3/8 inches. - 8000 and 9000 Series. (4505010) By ordering here, you will receive the Charbroil factory burner assembled with the collector box and electrode. Sorry, we do stock or ship the electrode wire or push button.
8000 Burner Assembly 1999 & After
4509093
Sorry, we are sold out of this burner and cannot supply. We have no substitutes to offer.
Masterflame 2.5 series burner assembly for Charbroil grills made in 1999 and later. The distance between the center of the venturi tubes is 2 3/8 inches. - 8000 and 9000 Series. (4505010) By ordering here, you will receive the Charbroil factory burner assembled with the collector box and electrode. Sorry, we do stock or ship the electrode wire or push button.
7000 Burner Assembly 1999 & After
4505008
in-stock
Masterflame 2.5 series (BAR) Burner assembly for Charbroil grills made in 1999 and later. The distance between the center of the venturi tubes is 2 3/8 inches. For this part, we ship the burner provided to us from Charbroil. You will receive the current factory replacement burner. It comes with the factory collector box and electrode attached, it does not include the wire or push button, (4505084/4505074/4505008/4509092) $21.99
Each
Quantity:
6000 Burner Assembly 1999 & After
4505007
in-stock
Masterflame 2.5 series burner assembly for Charbroil grills made in 1999 and later. The distance between the center of the venturi tubes is 2 3/8 inches. - 5000 and 6000 Series. 4505007 or 4509091 (5/07-sub to 4505081) $22.95
Each
Quantity:
5000 Burner Assembly 1999 & After
4505007
in-stock
Masterflame 2.5 series burner assembly for Charbroil grills made in 1999 and later. The distance between the center of the venturi tubes is 2 3/8 inches. - 5000 and 6000 Series. 4505007 or 4509091 (5/07-sub to 4505081) $22.95
Each
Quantity:
Igniter Set
4501543
Sorry, we can no longer supply.
We sell a kit for the Masterflame 2.5 Series Burners. This 4501543 kit includes four items: Collector Box (4501543)/recently using new Charbroil part number 4500208), Electrode 5156119, Igniter Wire with round connector ends to fit on the push button igniter and the tip of the electrode, and a screw to attach the collector box assembly to the Masterflame 2.5 burner. This kit does not include the push button - this can be added to your order separately by entering your part number from the owner's manual in our part numer look up on our website. Most models are using push button part number 4153713, 4153714, or new Charbroil part number 5156113. Check your parts list. 7.75

Other Charbroil Parts: Vapor Bars | Flame Spreaders | Drip Vaporiser Shields | Briquette Plates | Rock Grates | Cook Grids
